Touch Screen Description
You can touch the screen manually to complete the corresponding operation. Here are three ways to use it:
Click: Any icon or button can be clicked to realize its function.
● Press and hold the standby interface will pop up the choice wallpaper desktop option box, you can according to the prompt change the wallpaper.
● Support full multi-touch.
Slide: Slide your finger on the screen upward or downward slowly to move the interface on the screen.
On some kinds of screens such as idle desktops, you can switch the desktop just by moving your fingers on the screen to left or right. Dragging your finger to slide will not select or activate anything on the screen.
You can just wait or gently press any place on the screen to stop the sliding after your finger rapidly sliding on the screen. Gently pressing or touching to stop the scrolling will not select or activate anything on the screen.
Specifications
Display
• 7” TFT 800x480 Capacitive Multi Touch Screen
Maintenance & Management
• Android 4.2
• Supports third-party communication APP
• Supports Web, Telnet
• Web Management with different account right
• Supports automatic upgrades/ configuration deployment
• Supports encrypted configuration files download with AES
• Supports pushing message
• Supports Auto-Provisioning (DHCP option/ PnP/ Phone flash)
• Supports TR-069
• Supports Web upgrade
• Supports U Disk/SD upgrade
• Supports backup/restore/factory reset data

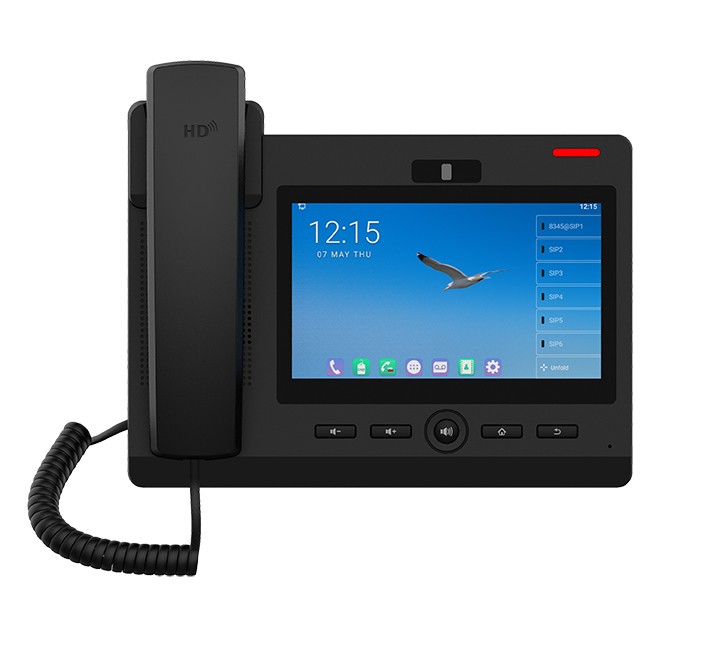

Android Video IP phone Features
Physical Features
• Adapter Input:100-240V
• Adapter Output:12V/1A
• WAN Port -10/100/1000 Base-T RJ-45 for LAN
• LAN Port- 10/100/1000 Base-T RJ-45 for PC
• HDMI Port - Type A
• SD Interface - TF Card Support Upto 32G
• USB Port- USB 2.0
• Power Consumption- Idle: 2.5W/Active: 5W
• LCD Size Diagonal:7 inch (800 x 480) Capacitive touch screen
• Camera- Adjustable Position
• Operation Temperature: 0~40℃
• Relative Humidity: 10～65%
• CPU Freescale Core Quad 1 Ghz
• SDRAM - 1GB DDR3 1066
• Flash- 4GB
• Weight- Phone:1.2Kg/Total:1.8Kg
Call Features
• Call Forwarding
• Call Transfer (blind/attended/alert)
• Call Holding
• Call Waiting
• Local 3 way Conference(video)
• BLF List
• Capable of 10 way conversation
• Join Call
• Pickup
• Call Completion
• Hot desk function
• Virtual DSS Key (Upto 140)
• Auto Redial / un-redial
• Support multi line and pre-dial
• Support messaging and MWI
• Voice recording during talking /local
• Flexible dial plan
• Hotline/Warm-line
• Call Rejection
• Black List
• Barring function for outgoing calls
• Do Not Disturb
• Auto Answer (Hands- free / Headset)
• Caller ID display
• CLIR (rejects anonymous calls)
• CLIP (to make an anonymous call)
• Dial without registration
• Supports Call Logs with Missed / Incoming / Outgoing calls
• Intercom/Intercom barge
• Password dial
• Headset ring
• Direct IP call without SIP proxy
Phone Features
• Android 4.2 OS
• Supports high quality video call
• Supports SIP 2.0 (RFC3261) and correlative RFCs
• Supports 6 SIP servers and Backup SIP proxy servers.
• Supports SIP UDP/TCP/TLS
• Supports HDMI
• Supports USB Host
• Supports Acoustic echo cancellation (AEC) - 128ms max filter length
in duplex speaker phone mode
• Supports PLC & adaptive jitter buffer
Audio Features
• Wideband codec: G.722
• Narrowband codec: G.711(A/μ), G.723.1, G.729AB, iLBC, AMR
• DTMF: In-band, Out-of-band(RFC 2833) and SIP INFO
• Full-duplex hands-free speaker phone with AEC (Max filter length –
128ms)
• Voice Activity Detection (VAD)
• Comfort Noise Generation (CNG)
• Adaptive jitter buffer
• Packet loss concealment (PLC)
• Audio format: WAV/MP3/OGG
Video Features
• Video codec: H.264 / H.263
• Image codec: JPEG/PNG/BMP/GIF
• Video format: MP4/3GP/FLV
• Video call resolution: QCIF / CIF / VGA / 4CIF (1280x720P Optional)
• Bandwidth selection: 64kbps~4Mbps
• Frame rate selection: 10~30fps
• Picture-in-Picture (PIP)
• Video from remote site can be displayed in full screen
• Supports up to 4 video display mode
Network/ Security Features
• WAN/LAN: support bridge mode
• Supports PoE (802.3af)
• Supports main DNS and secondary DNS server
• Supports VLAN
• Supports SNTP Client
• Supports VPN L2TP / PPTP / IPSec
• Supports SIP SRTP,
• Supports Web HTTP / HTTPS
• Supports QoS: 802.1p/q, DSCP
• Supports MD5 authentication
• Supports Web Filter
• DHCP/ static/ PPPoE
• STUN
Key Android Video IP Phone Applications
IP Phone is widely used in many application scenarios such as Call Centers, International Companies, Call Shop, etc.
● Video Conferencing Apps
● VoIP and SIP Clients
● Unified Communications
● Productivity Apps
● Security and Encryption Apps
● Customer Service and CRM
● Entertainment and Media
● Utilities and Tools
