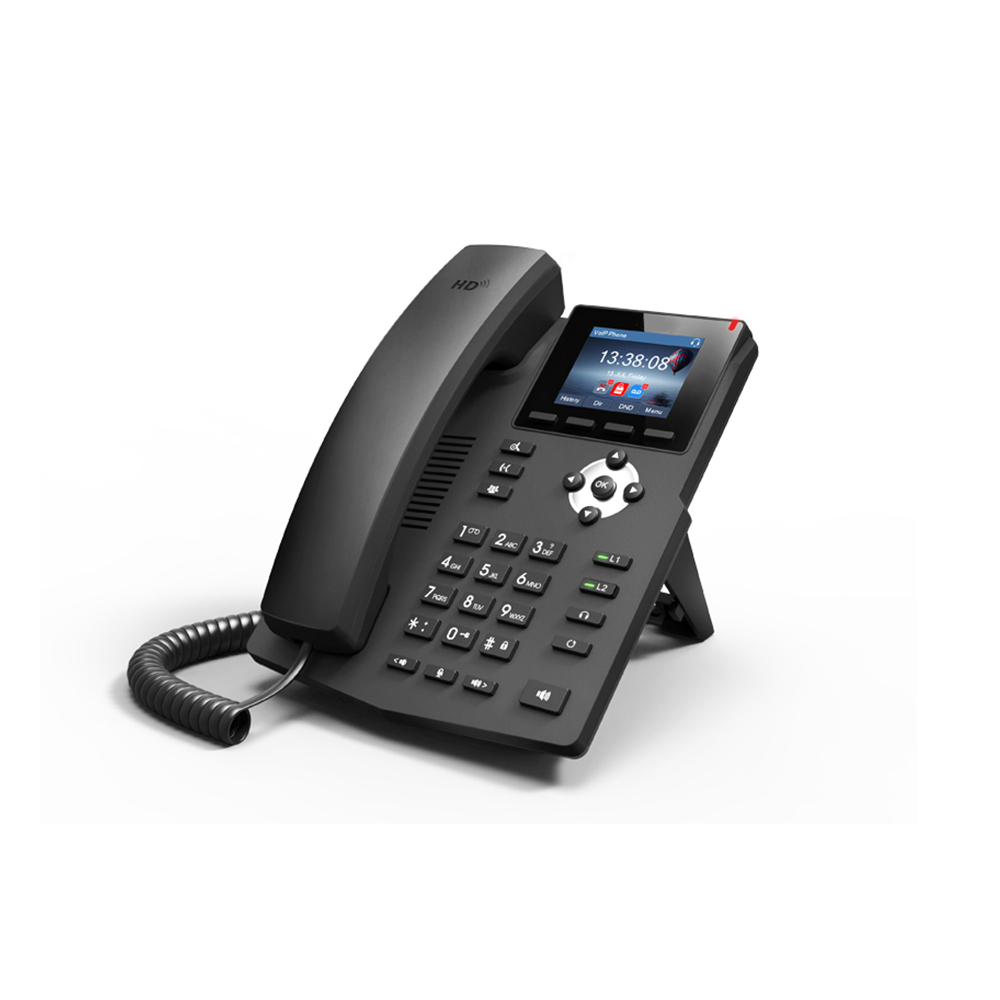

X3V VoIP IP phone (Voice over Internet Protocol Internet Protocol phone) is a communication device that allows users to make voice calls over the internet using VoIP technology. Unlike traditional analog phones that rely on the Public Switched Telephone Network (PSTN), VoIP phones use the internet to transmit voice data.
VoIP IP phones are commonly used in businesses, call centers, and homes as they offer cost-effective and feature-rich communication solutions.
X3V VOIP IP PHONE Audio Features
HD voice microphone/speaker (handset/hands-free, 0 ~ 7KHz frequency response)
HAC handset
Wideband ADC/DAC 16KHz sampling
Narrowband codec: G.711A/U, G.729AB, iLBC
Wideband codec: G.722, Opus
Full-duplex hands-free speakerphone with AEC
Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)
Packet Loss Concealment (PLC)
Dynamic Adaptive Jitter Buffer
DTMF: In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO
VQM voice quality
Video Features
Hardware video decoding: H.264
Video call resolution: QVGA / CIF / VGA / 4CIF / 720P / 1080P
Phone Features
6 lines
Call out / answer / reject
Mute / unmute (microphone)
Call hold / call resume
Call waiting
Speed dial
Call forward (Always/Busy/No Answer)
Call transfer (Attended/Unattended)
Redial
3-way conference
Auto-answering
Do-Not-Disturb
Hot line
Hot desking
Network time synchronization
Programmable DSS/soft keys
Action URL / Active URI
uaCSTA
Built-in 2.4GHz Wi-Fi→Network standard: IEEE 802.11b/g/n→Transmission rate: Up to 150Mbps (dynamic)
Wireless headset →Plantronics wireless headset (through Plantronics APD-80 EHS Cable)→Jabra wireless
Physical Features
Color: black
DC power input: DC5V/1A
Power consumption (PoE): 1.78 W ~ 6.03W
Power consumption (Adapter): 1.28W ~ 4.48W
Installation: Desktop stand Wall-mounted (need an additional wall hanging parts)
Device dimensions: Desktop stand (angles 1: 45 degree): 169x186.3x174.5 mm Desktop stand (angles 2: 50 degree): 169x177.6x183.7 mm Wall-mounted: 169x115.6x212.5 mm
Working temperature: 0~45℃
