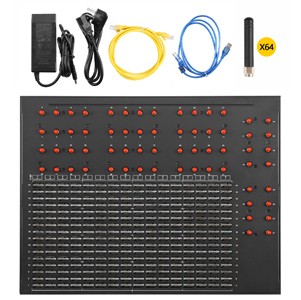

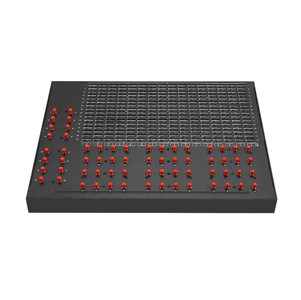

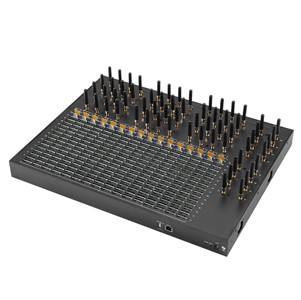

Elevate your messaging capabilities with our 64-Port eSIM SMS Gateway, designed for high-volume SMS communication in businesses and organizations. This powerful gateway allows you to send and receive SMS messages using multiple eSIMs simultaneously, ensuring efficient and reliable messaging for various applications such as marketing campaigns, alerts, and customer notifications.

eSIM Device Data Operation Manual

1. Identifying eSIM Devices

The software interface of eSIM devices differs from that of other devices, characterized by a white "eSIM" label in the top right corner of the software page, indicating eSIM functionality support. When this "eSIM" label is white, it signifies that eSIM functionality is not enabled. In such cases, the device can only use physical SIM cards. For example, if you have purchased a GOIP 532 eSIM device and eSIM is not enabled, you can insert up to 32 physical SIM cards for operation.

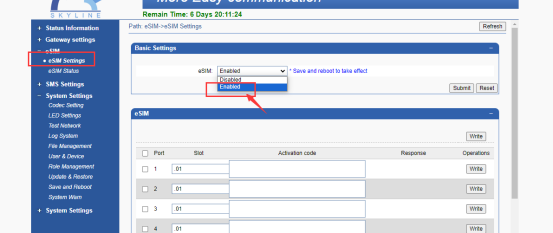

Enabling eSIM

To use the eSIM function, you need to enable it. Follow these steps:

1. Go to “eSIM”.

2. Navigate to “eSIM Settings”.

3. Find the “eSIM” option and enable it.

4. After clicking enable, save the settings and reboot the device to apply the changes.

Once the device restarts, the eSIM function will be activated.

                                                      Figure 1

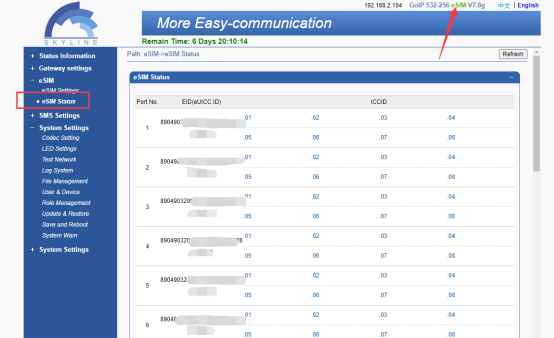

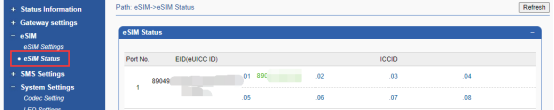

2. Once the device comes back online, user will notice that the "eSIM" label in the top right corner has turned green. This indicates that the eSIM function is now enabled. Additionally, user can view the eSIM data, including the eUICC ID, in the eSIM status section.

                                                      Figure 2

3. eSIM Data Writing

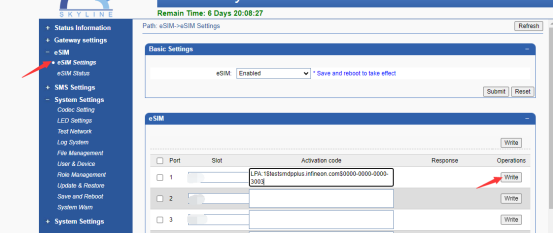

Efficiently recognize and process the received eSIM activation QR code to extract the essential activation data, such as: `LPA:1$testsmdpplus.infineon.com$0000-0000-0000-3003`. Place this data into the activation code field in "eSIM > eSIM Settings", as shown in the image below (Figure 3). Then, click the "Write" button.

                                                          Figure 3

4. Once the eSIM data is successfully written, user can see the green ICCID code in "eSIM > eSIM Status" (as shown in Figure 4).After successful registration, user can make calls and send/receive sms messages.

                                                         Figure 4

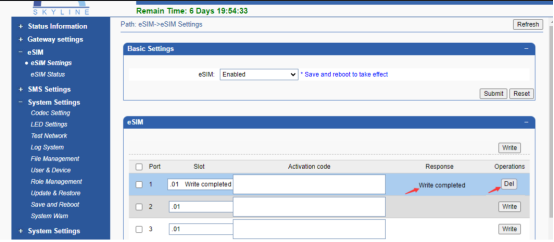

5. If the user needs to change/delete the eSIM data, user can delete the written eSIM data by clicking the delete button on the "eSIM > eSIM Settings" page (as shown in Figure 5).

                                                        Figure 5

• 64 eSIM Slots: Effortlessly manage a large number of virtual SIMs to handle substantial SMS traffic without the complexity of physical SIM cards.

• Rapid Message Delivery: Enjoy high-speed SMS transmission with minimal latency, ensuring your messages reach recipients promptly.

• User-Friendly Dashboard: Control and monitor all your messaging activities from a centralized, intuitive web interface, simplifying configuration and management.

• Scalability: Easily scale your messaging capabilities as your business grows, adding more eSIMs as needed.

• Detailed Analytics: Access comprehensive reporting features to analyze message performance, delivery rates, and user engagement, enabling data-driven decisions.

• Bulk SMS Campaigns: Efficiently send large volumes of promotional messages to customers.

• Real-Time Notifications: Dispatch alerts for important updates, events, or emergencies quickly.

• Customer Support: Facilitate two-way communication for customer inquiries and support requests via SMS.

• Automated Messaging: Set up automated systems for reminders, confirmations, and follow-ups.

• Market Research: Conduct surveys and gather feedback from customers through SMS outreach.

• Event Management: Manage ticket sales, confirmations, and attendee updates effectively.

• Integration with Business Systems: Link with CRM or ERP systems for streamlined communication based on user actions.
